Description

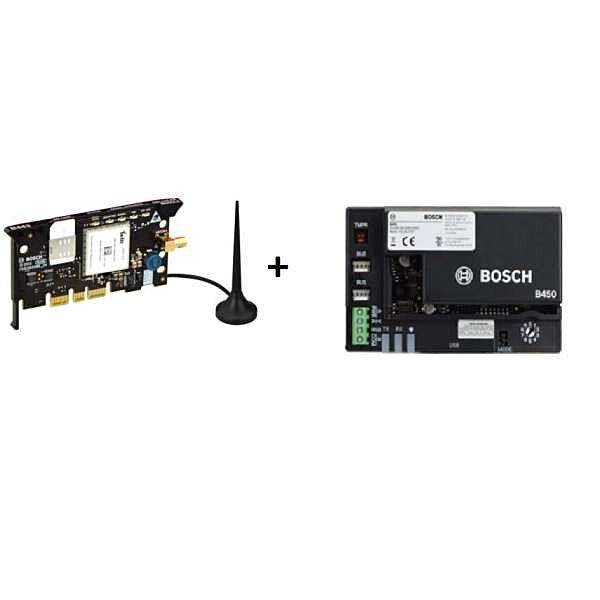

Bosch 3G GPRS Communicator (B443) Combo for remote programming and monitoring of Bosch control panels, Solution 2000 and 3000.
Model: B443+B450M
- Remote programming and monitoring of compatible Bosch control panels
- Configured directly from Bosch Remote Programming Software eliminating the need for separate configuration
Specifications B443
| Current (operating) | Standby: 35 mA Alarm: 150 mA |
| Voltage (operating) | 12 VDC nominal |
| Board Dimensions | 50 mm x 93.5 mm x 15.25 mm (2 in x 3.68 in x 0.60 in) |
| Antenna (included) | Magnetic base omni-directional 2.5 m (8.2 ft) cable with SMA connector |
| SIM card | 3V/1.8V SIM (compliant with GSM 11.12 recommendation) |
| Operating temperature | -10°C to +55°C (+14°F to +131°F) |
| Relative humidity | 5 - 93% at +32°C (+90°F) non-condensing |
| Environmental class | III |
| Usage | Indoor |
| US certification | Open Development Certified |
| Canada certification | Rogers certified |
| North America certification | PTCRB certified |
| CE certification | EN50130-4, EN61000-6-3, EN60950 |
Bosch Plug in Communicator Interface (B450-M)
Features
- Full two-way IP communication using Plug-in Cellular Communicators
- Plug and Play installation makes future radio technology changes easy
- Compatible with new and most deployed Bosch control panels
- Supports remote installation of cellular modules for improved signal
| Relative humidity | Up to 93% at +32°C (+90°F) non-condensing |
| Operating temperature | 0°C to +50°C (+32°F to +122°F) |
| Dimensions | 79 mm x 128 mm x 38 mm (3.11 in x 5.03 in x 1.50 in) |
| Current (operating) | Standby: With cellular communicator = 60 mA Alarm: With cellular communicator = 180 mA |
| Voltage (operating) | (Bus operation): 12 VDC nominal |
| Data bus wire gauge | 12 AWG to 22 AWG (2.0 mm to .06 mm) |
| USB cable | USB cable (Type A to A male-to-male) not supplied |
| Data bus wire length | Maximum Distance wire size 22 AWG (0.6 mm) - 12 m (40 ft) 18 AWG (1.0 mm) - 30 m (100 ft) 16 AWG (1.3 mm) - 48 m (158 ft) 12 AWG (2.0 mm) - 122 m (400 ft) You can extend the wire distances 300 m (1000 ft). Use a separate power supply, such as the B520 Auxiliary Power Supply Module. |
Downloads
Bosch 3000 Installation Manual
