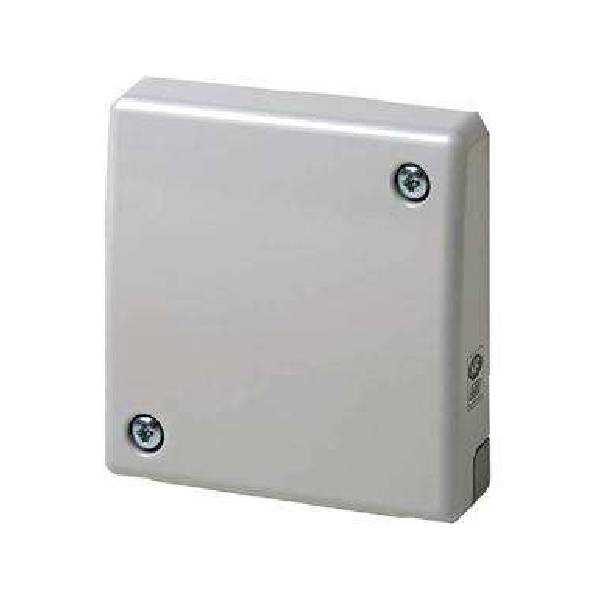

Bosch Siesmic Sensor 4 Metre range, 50M2, ISN-SM-50

BoschSKU: F.01U.002.248 ISN-SM-50

Price:
Sale price$531.82

Description

Bosch seismic sensor ISN-SM provides 24-hour surveillance of vault walls and doors, safes, night safes, and automatic teller machines with sensitivity settings.

Model: ISN-SM

Features

  • 24-hour surveillance of vault walls and doors, safes, night safes, and automatic teller machines
  • Sensitivity settings using DIP switches
  • SENSTEC sensor and signal processing system based on microcontrollers
  • Low-profile design

Shop CTC Security for best deals on Bosch Security products & accessories.

Specifications

Compatibility: Better than EN 50130-4
HF interference tolerance (EN 61000-4-3): No alarm or setup at critical frequencies within a range of 1 MHz to 1000 MHz at > 30 V/m.
Dimensions: 8.9 cm x 8.9 cm x 2.2 cm
Weight: 0.320 kg
Humidity (EN60721): Up to 95% relative humidity, not condensing
Housing protection class (EN 60529, EN 50102): IP435
Temperature (operating): -40 °C to +70 °C
Temperature (storage): -50 °C to +70 °C
For the test: Low < 1.5 VDCHigh > 3.5 VDC
Test duration (including test transmitter ISN-GMX-S1): ? 3 sec
ISN-SM-50: 4 m radius = 50 m2 monitoring area
ISN-SM-80: 5 m radius = 80 m2 monitoring area
Alarm relay (changeover contact): Contact closed in standby mode (opened in the event of an alarm) designed for 30 VDC, 100 mA, resistance < 20 Ohm
Alarm holding time: Approx. 2.5 sec
Tamper switch/wall tamper: Tamper contact closed in standby mode (opened in the event of tampering) designed for 30 VDC, 100 mA, resistance < 45 Ohm



Downloads

Bosch Siesmic Sensor 4 Metre range, 50M2, ISN-SM-50 Datasheet

Brochure Detector Comparison Guide
