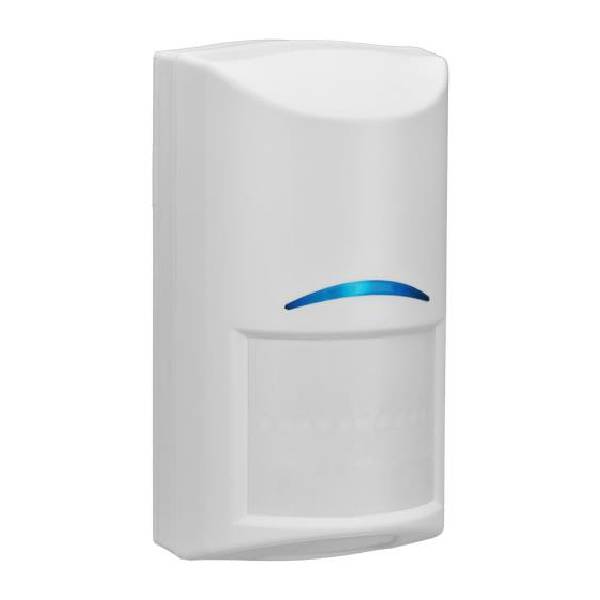

Bosch Wireless TriTech Motion Detector Radion, RFDL-11

Save $12.97
BoschSKU: F.01U.383.422 RFDL-11

Price:
Sale price$259.17 Regular price$272.14

Description

Radion wireless motion detector RFDL-11 from Bosch provides the range, scalability and exceptional battery life required to ensure reliable performance and superior quality from a wireless detector.

Advanced diagnostics and multiple device enrollment options make installation and maintenance simple and cost effective.

With a complete line of peripherals, RADION provides the flexibility for virtually any application requirement.

Model: RFDL-11

We recommend using this Detector if you have pets or the detector is going into a hot environment like a Garage

Shop CTC Security for best deals on Bosch Security products & accessories.

Features

  • 11m x 11m (35 ft by 35 ft) coverage
  • Up to 45Kg (100 lb.) Pet Immunity
  • Flexible Mounting Height
  • Compatible with Bosch premises wireless systems
  • Draft and Insect immune
  • Motion Analyzer II Signal Processing
  • Supervised for low-battery, cover-tamper, and removal from mounting surface tamper conditions.
  • Operational up to 5 years using 4 user replaceable AA Alkaline Batteries
  • Pet Immunity: The detector is able to distinguish between signals caused by humans and signals caused by pets such as a dog up to 45kg (100lb) or two dogs at 27kg (60lb) or up to ten cats. This provides immunity to false alarms while maintaining proper catch performance of human targets.

  • Draft and Insect Immunity: The sealed optical chamber provides immunity to drafts and insects.

  • Temperature Compensation: The sensor adjusts its sensitivity maintain consistent catch performance at critical temperatures.

  • Battery Life Extension feature (PIR and TriTech): In the normal operating mode, an alarm can be transmitted only after three (3) minutes have passed since the previous alarm restoral. This 3 minute lockout time reduces unnecessary RF transmissions in high traffic areas, thereby extending battery life.

Works With

  • RF3212E Receiver
  • Radion SD12 bus compatible receiver
  • Solution Ultima 880
  • Solution 16i
  • Solution 16Plus
  • Solution 64
  • Solution 144
  • Solution 6000
  • Solution 3000

 Specifications

Dimensions: 138 mm x 72 mm x 64 mm (5.5 in x 2.8 in x 2.5 in)
Internal Coverage Point ability: Vertical: -4? to -10?
Alarm Indicator Blue LED for TriTech alarms Green LED for microwave detection Red LED for PIR detection
Sensitivity Selection: Field selectable for standard or intermediate sensitivity.
Power/Voltage: Four AA Alkaline batteries, 1.5 VDC (1.5 VDC x 4 batteries = 6 VDC total)
Battery life: Up to 5 years
Temperature: Functional range: -10?C to +49?(+14?F to +120?F)UL only: 0?C to +49?C (+32?F to+120?F)EN 50130-5 Class II only: -10?C to 40?C (+14?F to +104?F
Environment Complies with EN50130-5 Class II
Relative Humidity: Up to 93% non-condensing
Cove rand Wall Tamper Switch: Transmits a tamper switch signal when the unit is removed from its base, or the mounting surface.
Frequency: 433.42 MHz
Use: Intended for indoor use.
Receivers: B810 wireless receiver (compatible with RFDL-11-A only)RFRC-OPT wireless receiver (compatible with RFDL-11 only)RFRC-OPT-CHI wireless receiver (compatible with RFDL-11-CHI only)



 Downloads

Bosch Wireless TriTech Detector Radion, RFDL-11 Datasheet

Brochure Detector Comparison Guide
