Rosslare Digital Tactile Piezo-electric Switch, High Risk Situations, EX-17E0

Save $24.78
RosslareSKU: ROSEX-17E0

Price:
Sale price$82.60 Regular price$107.38

Description

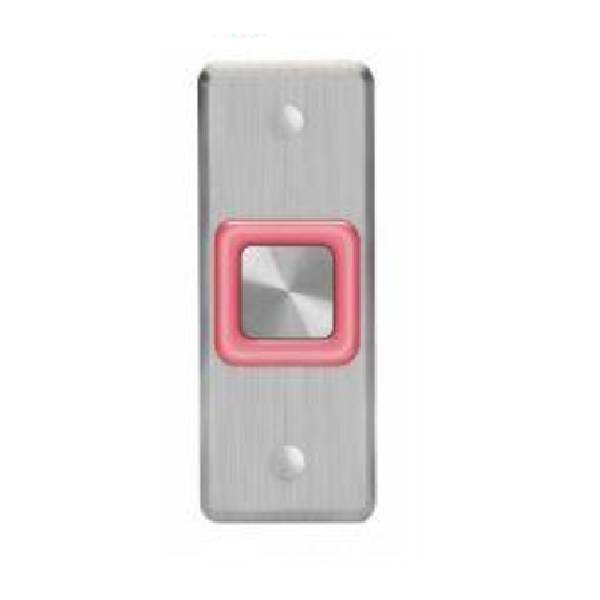

Rosslare EX-17 is a heavy duty, non-sparking, non-magnetic, corrosion resistant, illuminated, anti-vandal, timed digital switch, designed for both indoor and outdoor use.

Model - EX-17E0

MAIN FEATURES :
  • Advanced soft touch piezoelectric switch
  • New weatherproof design water and dust proof, grease, oil and other chemical solvent repellent
  • Vandal resistant
  • Stainless steel mounting plate and tactile button with no moving parts
  • Mounting Method Single Gang: Mounts directly to a US gang switchbox
  • Dimensions (mm): 114 (H) × 44 (W) × 32 (D)
PROFESSIONAL GRADE FEATURES :
  • Non-sparking, non-magnetic, corrosion resistant
  • Adjustable output and LED indication time of 1 to 60 seconds
  • Output and indication toggle option
  • Jumper selectable illumination status: red, green, or no illumination
  • Built-in buzzer with alarm input and sound upon button press options
  • Two separate full form-C relay outputs for separate application wiring: N.O. and N.C.
  • Input for external lighting alerts for evacuation and other applications

It features solid state Piezoelectric Switch Technology generating two isolated Form C output relays with no physical movement or moving parts. Among its many features are: Jumper selectable illumination status with light dimming option, buzzer mode, full dual-relay output, and timed operation and relay toggle option. The EX-17 mounts directly to a standard US-sized gang switchbox and is crafted to the highest manufacturing standards out of the finest materials under Rosslares ISO 9001:2008 Certified Quality standards.

Shop CTC Security for best deals on Rosslare Security Products

Downloads

Rosslare Mullion Digital Tactile Piezo Electric Switch, EX-17E0 Datasheet
