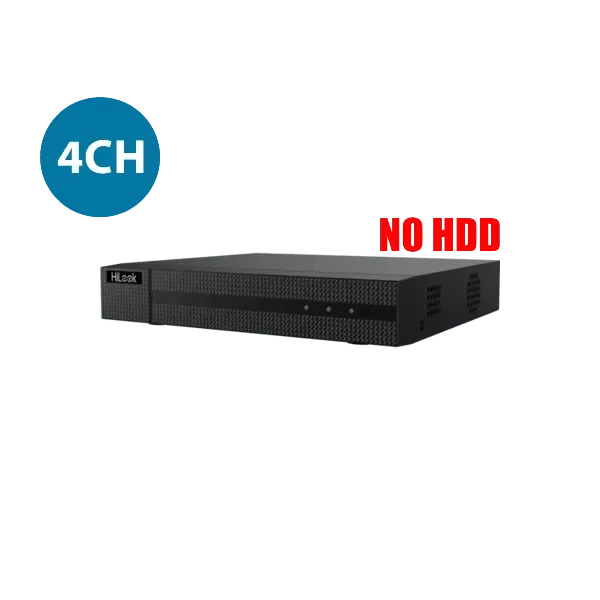

HiLook 4 Channel Network Video Recorder, NVR-104MH-C/4P(B)

Save $42.04
HiLookSKU: NVR-104MH-C/4P(B)

Price:
Sale price$176.26 Regular price$218.30

Description

Up to 4 channel IP cameras can be connected to the HiLook Network Video Recorder, with plug and play technology, power over ethernet, supports multiple video formats, includes one bay for hard disk drive, no hard drive included.

Model: NVR-104MH-C/4P(B)

Network Video Recorder Features

  • Up to 4 channel IP cameras can be connected
  • Plug & Play with 4 Power-over-Ethernet (PoE) interfaces
  • Supports decoding H.265+/H.265/H.264+/H.264 multiple video formats
  • Up to 4-ch @ 1080p decoding capacity
  • 1 HDD for continuous video recording.

Specifications

Video And Audio

  • IP Video Input4-ch ,Up to 8 MP resolution
  • HDMI/VGA OutputHDMI:1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output,VGA:1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ;HDMI/VGA simultaneous output
  • Incoming Bandwidth40 Mbps
  • Outgoing Bandwidth80 Mbps
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio Input1-ch, RCA (2.0 Vp-p, 1 k Ω)
  • Decoding
  • Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
  • Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Synchronous Playback4-ch
  • Live View/Playback Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Capability1-ch @ 8 MP / 4-ch @ 1080p
Hard Disk
  • SATA1 SATA interface
  • Capacity Up to 6TB capacity for each disk
  • External Interface
  • USB Interface2 × USB 2.0
General
  • Power≤ 65 W
  • Power Supply48 VDC
  • Working Temperature-10 to +55º C (+14 to +131º F)
  • Working Humidity10 to 90 %
  • Consumption(Without Hard Disk)≤ 10 W (without enabling PoE)
  • Dimensions(W × D × H)265 × 225 × 48 mm (10.4" × 8.9" × 1.9")
  • Weight(Without Hard Disk)≤ 1 kg (2.2 lb)

Downloads

NVR-104MH-C/4P(B) Datasheet
