Description

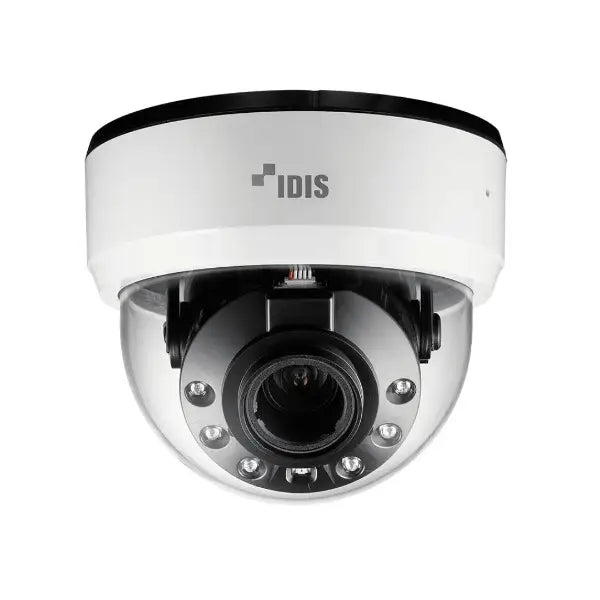

The IDIS Motorised Dome Camera features day/ night ICR and a true wide dynamic range, to help the camera take better photos in low light conditions.
Model: DC-D4236RX-A, Dome Camera
With IR Distance of up to 30 metres the motorised dome camera also features full 2 megapixel high definition.
IDIS 2MP INDOOR MZ (NO AUDIO) DOME UPTO 5YR
Camera Features
- Full HD IR Dome Camera / NDAA Compliant
- Easy installation with Direct IP NVR Full HD (1080p) resolution
- Motorized Vari-focal lens (f=2.8 - 12mm)
- micro SD/SDHC/SDXC Alarm in / out PoE (IEEE 802.3af Class 2)
- Day and night (ICR)
- True wide dynamic range (WDR)
- IR LED (Distance: 30 m / 98.4 ft)
- 3-axis mechanical design for installation
- Supports ONVIF
Specifications
IDIS Motorised Dome Camera 2MP, DC-D4236RX-A
| Video | Network Dome Camera |
| Image Sensor | 1/2.8 |
| Max Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | f=2.8-12mm |
| Aperture | F1.4(W)-F2.8(T) |
| Iris Control | DC IRIS |
| Angular Field of View | Wide : 98°(H), 51°(V), 116°(D) |
| Tele : 33°(H), 19°(V), 38°(D) | Tele : 33°(H), 19°(V), 38°(D) |
| Pan/Tilt/Rotate Range | Pan: -175° ~ 175°, Tilt: 0° ~ 67°, Rotate: -177° ~ 177° |
| Min Illumination | COLOR : 0.1 lux @ F1.4 |
| B/W : 0 lux (IR LED ON) | B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 30 m / 98.4 ft (6ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | On / Off |
| Image Stabilizer | - |
| De-fog | - |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | 1-CVBS |
| Network | Network |
| Video Compression | H.265, H.264 (MP) M-JPEG |
| Intelligent Codec | Supported |
| Bitrate Control | H.265 - CBR / VBR, H.264 - CBR / VBR |
| Audio Compression | - |
| Two-way Audio | - |
| IP Camera Protocol | DirectIP 2.0, ONVIF |
| Max Frame Rate | 30ips : 1920 x 1080(WDR) |
| Supports Resolution | 1920x1080, 1280x720, 640x360, 352x240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x |
| IP Filtering, HTTPS | IP Filtering, HTTPS |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 256GB) |
| ALARM AND EVENT | ALARM AND EVENT |
| Trigger Event | Motion Detection, Alarm in, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| -Pre-recorderd Voice Alert (IDIS pro | On / Off |
| Audio In/ Out | - |
| Alarm In / Out | 1 / 1 |
| Environmental | Environmental |
| Vandal Proof Casing | - |
| Outdoor Ready | - |
| Operating Temperature | -10°C ~ 50°C ( 14°F ~ 122°F) |
| *Starting up at above 0°C (32°F) | *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | Electrical |
| Power Source | 12VDC, PoE IEEE 802.3af (Class 3) |
| Power Consumption | 12V=, 0.64A, 7.7W |
| PoE, IEEE 802 3af (Class 3), 7 6W | PoE, IEEE 802.3af (Class 3), 7.6W |
| Approval | FCC, CE, KC |
| Mechanical | Mechanical |
| Dimensions (Ø x H) | Ø122 x 103.4mm(Ø4.8" x 4.07") |
| Weight | 0.37kg(0.81lb) |
Downloads
IDIS Dome Camera 2MP, DC-D4236RX-A Brochure
