Risco LCD Keypad, RP432KP0000A

RiscoSKU: RP432KP0000A

Description

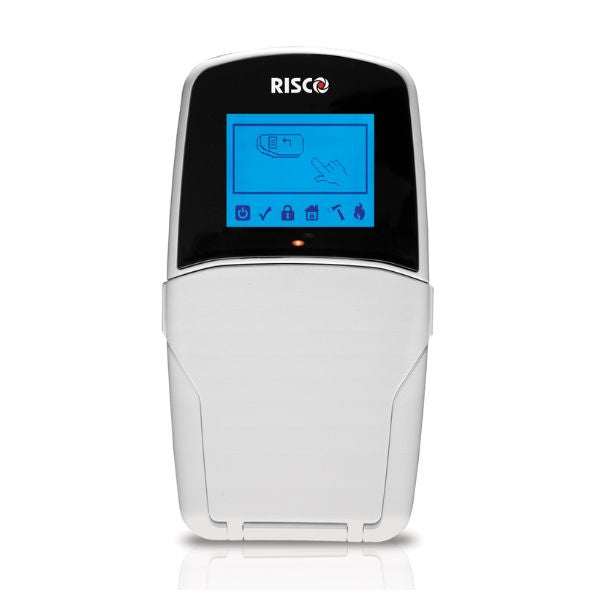

This Risco LightSYS LCD Keypad (RP432KP0000A) provides an attractive and secure access control solution for homes and businesses.

Model; RP432KP0000A

Graphic LCD keypad with or without proximity reader. Compatible with LightSYS and all ProSYS panels

Specifications

Current consumption RP432 KP: 13.8V +/-10%, 48 mA typical/52 mA max.
RP432 KPP: 13.8V +/-10%, 62 mA typical/130 mA max.
Main panel connection 4-wire BUS, up to 300 m (1000 ft) from Main Panel
Dimensions 153 x 84 x 28 mm (6.02 x 3.3 x 1.1 inch)
Operating temperature -10°C to 55°C (14°F to 131°F)
Storage temperature -20°C to 60°C (-4°F to 140°F)
Prox. RF frequency 13.56MHz
Compliance EN 50131-3 Grade 2 Class II



Downloads

Lightsys lcd keypad installer manual
