Description

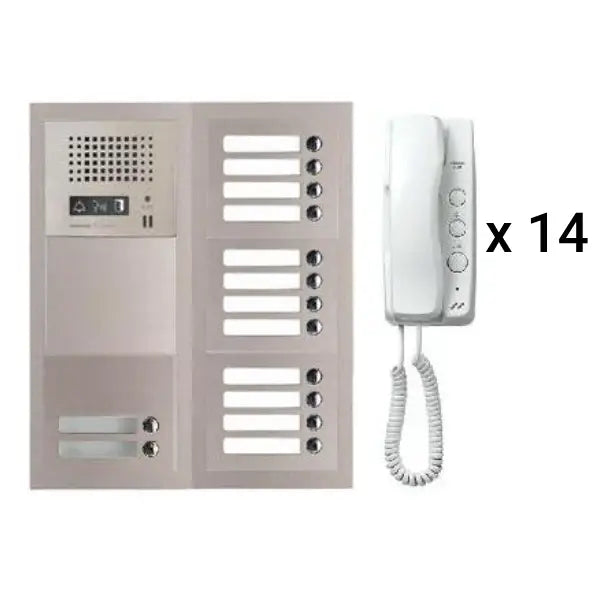

The Aiphone GT-14H 14 Apartment Multi Tenant Audio Handset Intercom System Set(GT-1D) offers advanced audio technology for dependable communication between apartments. With this system, you can always stay informed of important visitors and deliveries for added peace of mind.

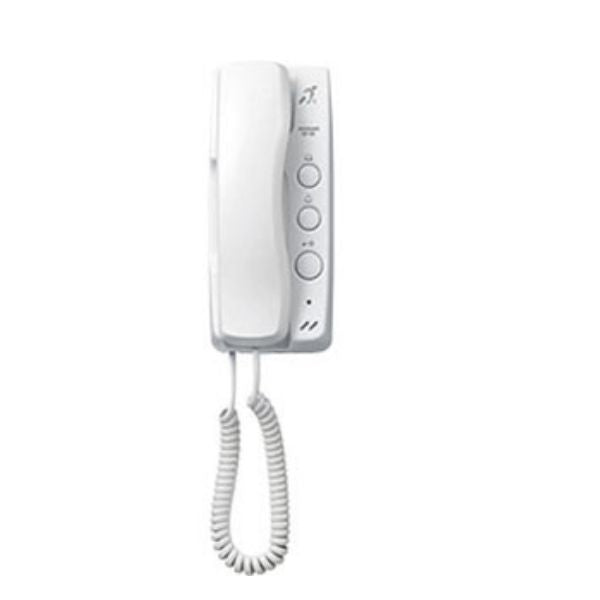

The GT-14D is an audio only handset tenant station for the GT series Multi-Unit entry system. It is equipped with Door Release, Option, and Guard buttons.
When a visitor calls, the tenant station rings and the call is answered by picking up the handset. The GT-1D also has the capability of calling the Concierge/Security Guard station(s), turning on a light while speaking with a visitor at the entrance, and receiving an emergency tone from a pull cord or panic call button.
In the Kit:
|
GT-DB |
Audio Module |
|
GT-DBP |
Audio Module Panel |
|
GF-4P |
4-Call Button Panel |
|
GF-2P |
2-Call Button Panel |
|
GT-SW |
Call Switch Module |
|
GF-3F |
3-Module Front Frame |
|
GF-3B |
3-Module Back Box |
|
GT-BC |
Audio Bus Control Unit |
|
GT-1D |
GT Audio Only Tenant Handset |
|
PS-2420UL |
24 VDC Power Supply |
|
W-DIN11 |
Din Rail Mounting Bracket |
Features
- ADA compliant design
- More variety of stations
- 170° Pan Tilt & Zoom video camera for larger viewing area
- Built-in access code keypad for keyless entry (500 codes)
- Alpha-numeric room numbering
- Link data allows for easy programming of multiple entrances/guard stations
- Up to 16 entrance panels,4 guard stations and 500 tenant stations
- Simple wiring with only 2 common wires for audio
- Access control from inside station to calling entrance (door release)
- Optional individual doorbell to ring tenant stations
- Optional individual audio only door station or video door station to ring tenant station (GT-2C only)
- Door release timer (momentary~20 seconds)
- Security guard station can be included to provide communication between office/lobby and tenants
- Optional panic call switch for emergency calling to guard/concierge
- Optional postal lock module,allowing easy entry for postal and delivery workers (modular design only)
- Security guard can screen calls from visitors (Reception Mode)
- Both audio/video and audio-only entrance panels can be combined in the same system
- LED's at door allow use in low light conditions
- Only 2 additional wires are required to add video
- Tenant can view entrance panel by pressing "key" button
Specifications
|
Power Supply |
24V DC - Use PS-2420UL (for GT-BC, GT-VBC, GT-NS, GT-MK, GT-BCX, and |
|
Current Consumption |
GT-BC: 0.9 A, GT-VBC: 0.9 A, GT-NS: 0.13 A, GT-MK: 0.18 A, GT-BCX: 0.35 A, |
|
Call Tone |
There are three different types of call tones: from entrance station, security guard station, and doorbell |
|
Talk & Video Path |
Secure single channel |
|
Communication |
Hands-free, voice-actuated communication or push-to-talk communication |
|
Door Release |
Connecting terminals: between ELM - ELC (N/O) and ELB - ELC (N/C) Specifications: less than 4A (resistance load), 24V AC/DC, dry closure contact |
|
Wiring |
Two conductor cables (Aiphone #872002 for audio and Aiphone #871802 for video) |
|
Type of Cables |
Pair cable (solid wire - not stranded), polyethylene insulated, low cap, diameter 20AWG-18AWG |
Condition of sale :
- Prices available per request
- This product suits only licensed installer or integrator
- No tech support can be offered over the phone due to the technicality and installation requirement of products.
- Door station will be supplied in non-assembled part and accessories and onsite assembly requires
- Door station supplied in the kit is surface mounted door station only.
- Door station rain hood is included in the kit
