Aiphone GT-16H 16 Apartment Multi Tenant Audio Handset Intercom System Set(GT-1D)

AiphoneSKU: GT-16H 16

Description

The Aiphone GT-16H 16 Apartment Multi Tenant Audio Handset Intercom System Set(GT-1D) offers advanced audio technology for dependable communication between apartments. With this system, you can always stay informed of important visitors and deliveries for added peace of mind.

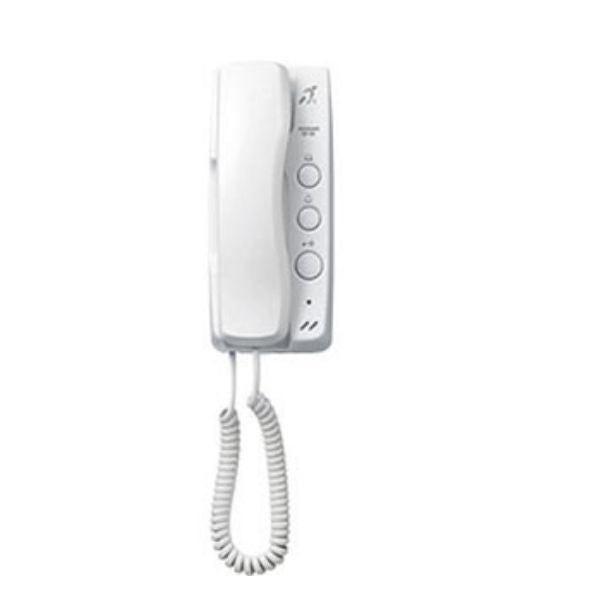

The GT-16D is an audio only handset tenant station for the GT series Multi-Unit entry system. It is equipped with Door Release, Option, and Guard buttons.

When a visitor calls, the tenant station rings and the call is answered by picking up the handset. The GT-1D also has the capability of calling the Concierge/Security Guard station(s), turning on a light while speaking with a visitor at the entrance, and receiving an emergency tone from a pull cord or panic call button.

Aiphone 15 Apartment GT Audio System Set Contains
In the Kit:

GT-DB

Audio Module

GT-DBP

Audio Module Panel

GF-4P
(Contains 4)

4-Call Button Panel

GT-SW
(Contains 4)

Call Switch Module

GF-3F
(Contains 2)

3-Module Front Frame

GF-3B
(Contains 2)

3-Module Back Box

GT-BC

Audio Bus Control Unit

GT-1D
(Contains 16)

GT Audio Only Tenant Handset

PS-2420UL

24 VDC Power Supply

W-DIN11

Din Rail Mounting Bracket




Features

  • ADA compliant design
  • More variety of stations
  • 170° Pan Tilt & Zoom video camera for larger viewing area
  • Built-in access code keypad for keyless entry (500 codes)
  • Alpha-numeric room numbering
  • Link data allows for easy programming of multiple entrances/guard stations
  • Up to 16 entrance panels,4 guard stations and 500 tenant stations
  • Simple wiring with only 2 common wires for audio
  • Access control from inside station to calling entrance (door release)
  • Optional individual doorbell to ring tenant stations
  • Optional individual audio only door station or video door station to ring tenant station (GT-2C only)
  • Door release timer (momentary~20 seconds)
  • Security guard station can be included to provide communication between office/lobby and tenants
  • Optional panic call switch for emergency calling to guard/concierge
  • Optional postal lock module,allowing easy entry for postal and delivery workers (modular design only)
  • Security guard can screen calls from visitors (Reception Mode)
  • Both audio/video and audio-only entrance panels can be combined in the same system
  • LED's at door allow use in low light conditions
  • Only 2 additional wires are required to add video
  • Tenant can view entrance panel by pressing "key" button

Specifications


Power Supply

24V DC - Use PS-2420UL (for GT-BC, GT-VBC, GT-NS, GT-MK, GT-BCX, and
GT-2C)

Current Consumption

GT-BC: 0.9 A, GT-VBC: 0.9 A, GT-NS: 0.13 A, GT-MK: 0.18 A, GT-BCX: 0.35 A,
GT-2C: 0.26 A, GT-2H: 0.11 A

Call Tone

There are three different types of call tones: from entrance station, security guard station, and doorbell

Talk & Video Path

Secure single channel

Communication

Hands-free, voice-actuated communication or push-to-talk communication

Door Release

Connecting terminals: between ELM - ELC (N/O) and ELB - ELC (N/C) Specifications: less than 4A (resistance load), 24V AC/DC, dry closure contact

Wiring

Two conductor cables (Aiphone #872002 for audio and Aiphone #871802 for video)

Type of Cables

Pair cable (solid wire - not stranded), polyethylene insulated, low cap, diameter 20AWG-18AWG

Condition of sale :

  • Prices available per request
  • This product suits only licensed installer or integrator
  • No tech support can be offered over the phone due to the technicality and installation requirement of products.
  • Door station will be supplied in non-assembled part and accessories and onsite assembly requires
  • Door station supplied in the kit is surface mounted door station only.
  • Door station rain hood is included in the kit
