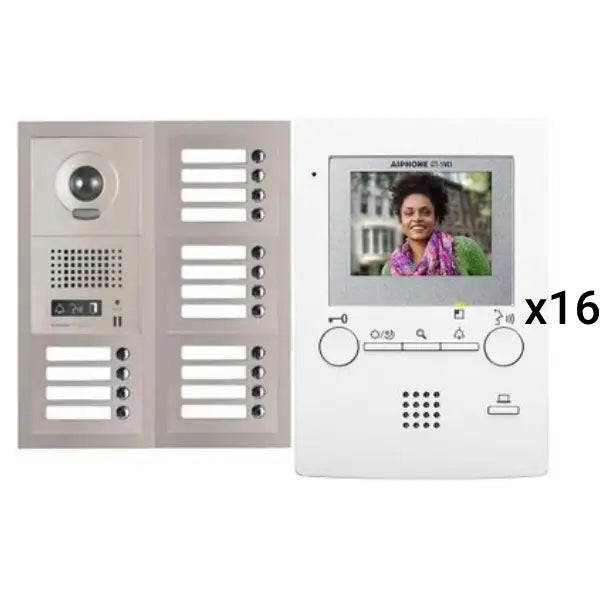

Aiphone GT-16V3 16 Apartment Multi Tenant 3.5" Video Intercom System Set(GT-1M3)

AiphoneSKU: GT-16V3 16

Description

The Aiphone GT-16V3 16 Apartment Multi Tenant Video Intercom System Set(GT-1M3) offers advanced video technology for dependable communication between apartments. With this system, you can always stay informed of important visitors and deliveries for added peace of mind.

The GT-16V3 consists of 16 x 3.5" video intercom tenant station for the GT series Multi-Unit entry system. It is equipped with Door Release, Option, and Guard buttons.

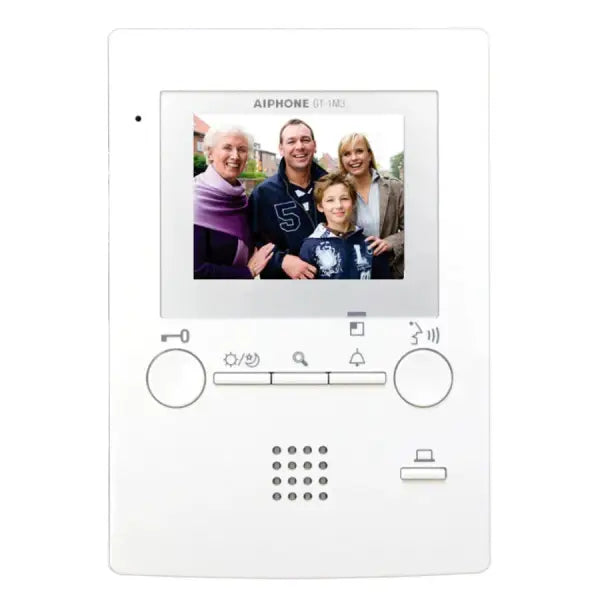

The GT-1M3 is a multifunctional audio/video station designed for use with the GT Series Multi-Tenant Video Intercom system.

It features door release and talk buttons, as well as a concierge/security guard call button and an option button for controlling external devices, such as lights.

The station also includes zoom and light adjustment buttons for the entry camera. When a visitor calls, the tenant station will ring and display video on screen.

By pressing the talk button, the call can be answered.

Additionally, the GT-1M3 can call the Concierge/Security Guard station(s), activate an external light during a conversation with a visitor at the entrance, and receive emergency tones from a pull cord or panic call button.

Aiphone 16 Apartment GT Audio Video System
In the Kit:

GT-VB

VIDEO MODULE

GT-VP

PANEL FOR VIDEO MODULE

GT-DB

AUDIO MODULE

GT-D

PANEL FOR AUDIO MODULE

GF-4P (4)

4-CALL BUTTON PANEL FOR GT SYSTEM

GT-SW (4)

CALL SWITCH MODULE FOR GT SYSTEM

GF-3F (2)

3-MODULE FRONT FRAME AND BRACKET

GF-3B (2)

3-MODULE BACKBOX FOR GT SYSTEM

GT-BC

BUS CONTROL ADAPTER

GT-VBC

VIDEO BUS CONTROL ADAPTER

GT-1M3 (16)

3.5" LCD SCREEN, HANDS-FREE COLOR VIDEO TENANT STATION

PS-2420UL

24V DC, 2A POWER SUPPLY (110 VAC)

W-DIN11

11cm MOUNTING RAIL FOR ADAPTERS



Features

  • ADA compliant design
  • Large variety of entrance and tenant stations - buildings can have a mix of all stations
  • 170° Pan Tilt & Zoom video camera for larger viewing area
  • Built-in access code keypad for keyless entry (500 codes)
  • Alpha-numeric room numbering
  • Link data allows for easy programming of multiple entrances/guard stations
  • Up to 16 entrance panels,4 guard stations and 500 tenant stations
  • Simple wiring with only 2 common wires for audio
  • Access control from inside station to calling entrance (door release)
  • Optional individual doorbell to ring tenant stations
  • Optional individual audio only door station or video door station to ring tenant station (GT-2C only)
  • Door release timer (momentary~20 seconds)
  • Security guard station can be included to provide communication between office/lobby and tenants
  • Optional panic call switch for emergency calling to guard/concierge
  • Optional postal lock module,allowing easy entry for postal and delivery workers (modular design only)
  • Security guard can screen calls from visitors (Reception Mode)
  • Both audio/video and audio-only entrance panels can be combined in the same system
  • LED's at door allow use in low light conditions
  • Only 2 additional wires are required to add video
  • Tenant can view entrance panel by pressing "key" button

Specifications


Power Supply

24V DC - Use PS-2420UL (for GT-BC, GT-VBC, GT-NS, GT-MK, GT-BCX, and
GT-2C)

Current Consumption

GT-BC: 0.9 A, GT-VBC: 0.9 A, GT-NS: 0.13 A, GT-MK: 0.18 A, GT-BCX: 0.35 A,
GT-2C: 0.26 A, GT-2H: 0.11 A

Call Tone

There are three different types of call tones: from entrance station, security guard station, and doorbell

Talk & Video Path

Secure single channel

Communication

Hands-free, voice-actuated communication or push-to-talk communication

Door Release

Connecting terminals: between ELM - ELC (N/O) and ELB - ELC (N/C) Specifications: less than 4A (resistance load), 24V AC/DC, dry closure contact

Wiring

Two conductor cables (Aiphone #872002 for audio and Aiphone #871802 for video)

Type of Cables

Pair cable (solid wire - not stranded), polyethylene insulated, low cap, diameter 20AWG-18AWG

Condition of sale :

  • Prices available per request
  • This product suits only licensed installer or integrator
  • No tech support can be offered over the phone due to the technicality and installation requirement of products.
  • Door station will be supplied in non-assembled part and accessories and onsite assembly requires
  • Door station supplied in the kit is surface mounted door station only.
  • Door station rain hood is included in the kit
