Description

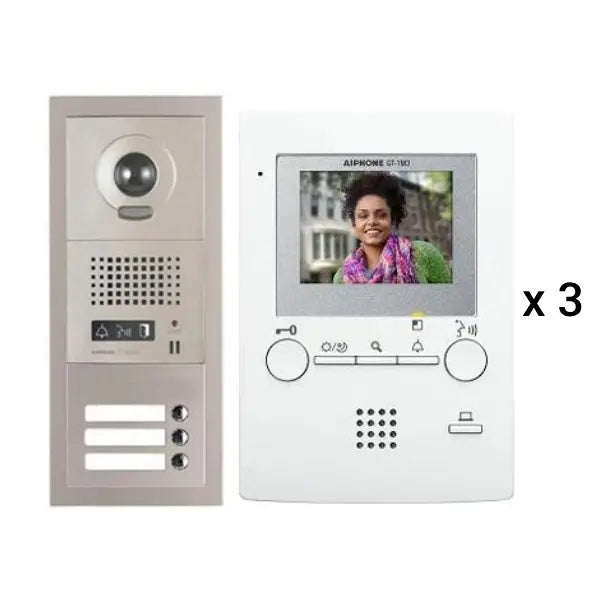

The Aiphone GT-3V3 3 Apartment Multi Tenant Video Intercom System Set(GT-1M3) offers advanced video technology for dependable communication between apartments. With this system, you can always stay informed of important visitors and deliveries for added peace of mind.
The GT-3V3 consists of 3 x 3.5" video intercom tenant station for the GT series Multi-Unit entry system. It is equipped with Door Release, Option, and Guard buttons.

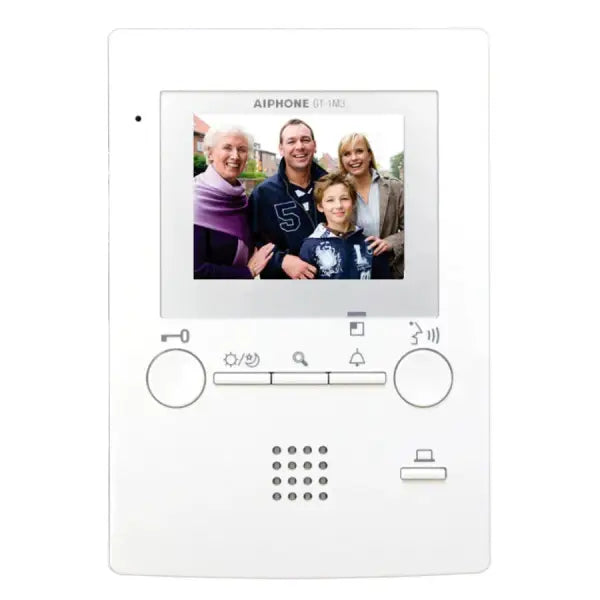

The GT-1M3 is a multifunctional audio/video station designed for use with the GT Series Multi-Tenant Video Intercom system.
It features door release and talk buttons, as well as a concierge/security guard call button and an option button for controlling external devices, such as lights.
The station also includes zoom and light adjustment buttons for the entry camera. When a visitor calls, the tenant station will ring and display video on screen.
By pressing the talk button, the call can be answered.
Additionally, the GT-1M3 can call the Concierge/Security Guard station(s), activate an external light during a conversation with a visitor at the entrance, and receive emergency tones from a pull cord or panic call button.
Aiphone 3 Apartment GT Audio Video System
In the Kit:
|
GT-VB |
VIDEO MODULE |
|
GT-VP |
PANEL FOR VIDEO MODULE |
|
GT-DB |
AUDIO MODULE |
|
GT-DBP |
PANEL FOR AUDIO MODULE |
|
GF-2P |
2-CALL BUTTON PANEL FOR GT SYSTEM |
|
GT-SW |
CALL SWITCH MODULE FOR GT SYSTEM |
|
GF-3F |
3-MODULE FRONT FRAME AND BRACKET |
|
GF-3B |
3-MODULE BACKBOX FOR GT SYSTEM |
|
GT-BC |
BUS CONTROL ADAPTER |
|
GT-VBC |
VIDEO BUS CONTROL ADAPTER |
|
GT-1M3 (3) |
3.5" LCD SCREEN, HANDS-FREE COLOR VIDEO TENANT STATION |
|
PS-2420UL |
24V DC, 2A POWER SUPPLY (110 VAC) |
|
W-DIN11 |
11cm MOUNTING RAIL FOR ADAPTERS |
Features
- ADA compliant design
- Large variety of entrance and tenant stations - buildings can have a mix of all stations
- 170° Pan Tilt & Zoom video camera for larger viewing area
- Built-in access code keypad for keyless entry (500 codes)
- Alpha-numeric room numbering
- Link data allows for easy programming of multiple entrances/guard stations
- Up to 16 entrance panels,4 guard stations and 500 tenant stations
- Simple wiring with only 2 common wires for audio
- Access control from inside station to calling entrance (door release)
- Optional individual doorbell to ring tenant stations
- Optional individual audio only door station or video door station to ring tenant station (GT-2C only)
- Door release timer (momentary~20 seconds)
- Security guard station can be included to provide communication between office/lobby and tenants
- Optional panic call switch for emergency calling to guard/concierge
- Optional postal lock module,allowing easy entry for postal and delivery workers (modular design only)
- Security guard can screen calls from visitors (Reception Mode)
- Both audio/video and audio-only entrance panels can be combined in the same system
- LED's at door allow use in low light conditions
- Only 2 additional wires are required to add video
- Tenant can view entrance panel by pressing "key" button
Specifications
|
Power Supply |
24V DC - Use PS-2420UL (for GT-BC, GT-VBC, GT-NS, GT-MK, GT-BCX, and |
|
Current Consumption |
GT-BC: 0.9 A, GT-VBC: 0.9 A, GT-NS: 0.13 A, GT-MK: 0.18 A, GT-BCX: 0.35 A, |
|
Call Tone |
There are three different types of call tones: from entrance station, security guard station, and doorbell |
|
Talk & Video Path |
Secure single channel |
|
Communication |
Hands-free, voice-actuated communication or push-to-talk communication |
|
Door Release |
Connecting terminals: between ELM - ELC (N/O) and ELB - ELC (N/C) Specifications: less than 4A (resistance load), 24V AC/DC, dry closure contact |
|
Wiring |
Two conductor cables (Aiphone #872002 for audio and Aiphone #871802 for video) |
|
Type of Cables |
Pair cable (solid wire - not stranded), polyethylene insulated, low cap, diameter 20AWG-18AWG |
Condition of sale :
- Prices available per request
- This product suits only licensed installer or integrator
- No tech support can be offered over the phone due to the technicality and installation requirement of products.
- Door station will be supplied in non-assembled part and accessories and onsite assembly requires
- Door station supplied in the kit is surface mounted door station only.
- Door station rain hood is included in the kit
