Description

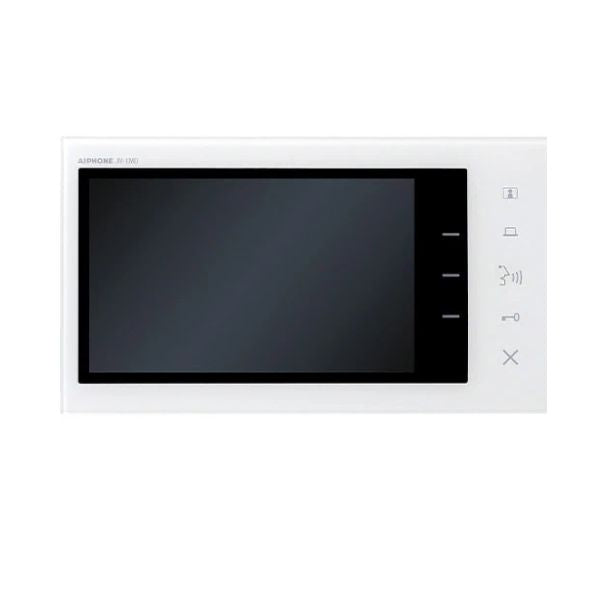

Aiphone JV-1FD Intercom expansion station Hands-Free Video System for intercom kit JV Series
The JV-1FD is an expansion station for the JV Series. The station provides an extra monitor for JV Series systems. One can be added per JV system, is sold separately, and is intended to be used only with the JVS-1A or JVS-1F box sets.
Key Features:
ā Intercom Internal Monitor Station (JV-1FD)
- 7ā screen for clear video identification and monitoring
- Slim, modern design to complement any space
- Hands-free communication with push-to-talk (simplex) option
Technical Specifications:
š¹ Power Source: 24V DC (PS-2420UL)
š¹ Door Release Options:
- Master/Expansion Station & Door Station: N/O dry contact, 24V AC/DC, 1A
- Second Door Station Output: N/O wet contact, 500mA (max), 12V DC
š¹ Communication Modes:
- Hands-free (VOX) or push-to-talk (simplex)
š¹ Wiring Requirements:
- Door Station to Master Station: 2-conductor, mid-cap, solid, non-shielded (Aiphone #871802)
- Door Station to Expansion Station: 2-conductor, mid-cap, solid, non-shielded (Aiphone #871802)
- Expansion to Master Station (without door release): 4-conductor, mid-cap, solid, non-shielded (Aiphone #871804 OR 2 runs of Aiphone #871802)
- Expansion to Master Station (with door release): 6-conductor, mid-cap, solid, non-shielded (Aiphone #871802 + #871804 OR 3 runs of Aiphone #871802)
š¹ Maximum Distance:
- Door Station to Master Station: 165' (22AWG) / 330' (18AWG)
- Door Station to Expansion Station: 165' (22AWG) / 330' (18AWG)
- Expansion Station to Master Station: 165' (22AWG) / 330' (18AWG)
- Power Supply to Master Station: 16' (22AWG) / 33' (18AWG)
Perfect for residential or commercial settings, the Aiphone Video Master Station, JV-1FD is an ideal intercom when combined with JV-door station.
