Description

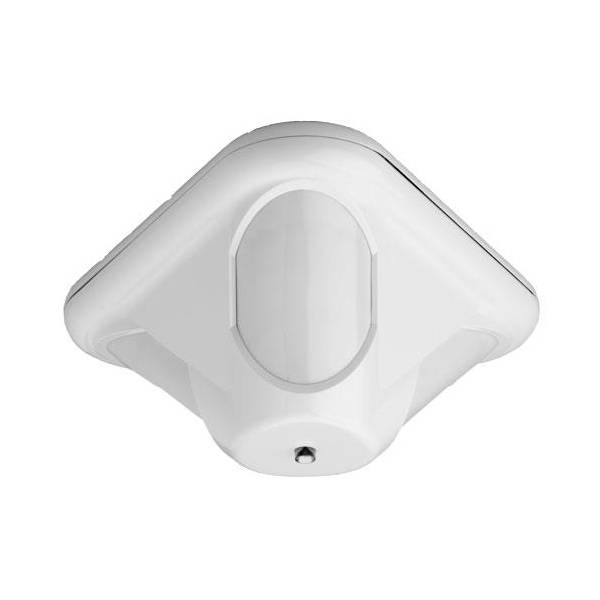

DS9370 Series TriTech PIR/Microwave doppler radar motion detector model is panoramic and uses several patented processing techniques to provide excellent catch performance with freedom from false alarms.
Model: DS9370
Each model can be mounted on ceilings as high as 6.1 m (20 ft). With three separate PIR sections that are fully adjustable, the DS9370 Series provides coverage integrity at all mounting heights, plus the ability to customize the coverage for specific areas
- Up to 7.6 m (25 ft) mounting height
- Fully adjustable optics for coverage integrity and customization
- Hinged chassis and base plate for easy installation
- High efficiency LED and light pipe system for easy walk testing
- First Step processing (FSP)
- Microwave adaptive processing
- 360° x 21 m (70 ft) diameter pattern
Shop CTC Security for best deals on Bosch Security products & accessories.
Specifications
| Design: | Modular chassis and hinged mounting base design provide easy access to field setup switches and wiring. |
| Dimensions: | 8.9 cm x 17.8 cm(3.5 in. X 7 in.) |
| Material: | High impact ABS plastic enclosure |
| Operating Temperature: | -40°C to +49°C (-40°F to +120°F)For UL Certificated installations, 0°C to +49°C (+32°F to +120°F) |
| Radio Frequency Interference (RFI) Immunity: | No alarm or setup on critical frequencies in the range from 26 MHz to 950 MHz at 50 V/m. |
| DS9370-C: | Complies with Environmental Class II (EN50130-5) |
| DS9370 and DS9370-BEL | 10.525 GHz |
| DS9370-C | 10.588 GHz |
| Height Range: | 3 m to 7.6 m (8 ft to 25 ft) recommended |
| Location: | Mounts directly to ceiling or to standard 10.2 cm (3.5 in.) octagonal electrical box. |
| Alarm: | Form C reed relay rated at 3.0 W, 125 mA at 28 VDC for resistive loads. |
| Tamper: | Cover and ceiling tamper. Normally Closed (with cover in place) tamper switch. Contacts rated at 28 VDC, 125 mA maximum. |
| Current: | 19 mA standby, 39 mA in alarm. |
| Voltage: | 9 VDC to 15 VDC |
Downloads
Brochure Detector Comparison Guide
Bosch Panoramic Motion Detector Tritech Ceiling Mount, DS9370 Datasheet
