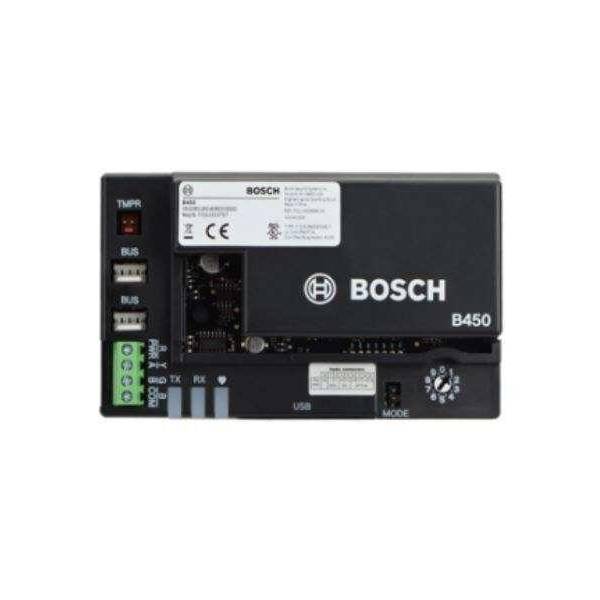

Bosch Plug in Communicator Interface,B450-M

Save 23%
BoschSKU: F.01U.332.308 B450-M

Price:
Sale price$136.40 Regular price$177.32

Payment & Security

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

Bosch B450-M plug in communicator interface with full two-way IP communication using plug-in cellular communicators.

Model: B450M

Features

  • Full two-way IP communication using Plug-in Cellular Communicators
  • Plug and Play installation makes future radio technology changes easy
  • Compatible with new and most deployed Bosch control panels
  • Supports remote installation of cellular modules for improved signal

Specifications

Relative humidity Up to 93% at +32°C (+90°F) non-condensing
Operating temperature 0°C to +50°C (+32°F to +122°F)
Dimensions 79 mm x 128 mm x 38 mm (3.11 in x 5.03 in x 1.50 in)
Current (operating) Standby: With cellular communicator = 60 mA Alarm: With cellular communicator = 180 mA
Voltage (operating) (Bus operation): 12 VDC nominal
Data bus wire gauge 12 AWG to 22 AWG (2.0 mm to .06 mm)
USB cable USB cable (Type A to A male-to-male)  not supplied
Data bus wire length Maximum Distance  wire size 22 AWG (0.6 mm) - 12 m (40 ft) 18 AWG (1.0 mm) - 30 m (100 ft) 16 AWG (1.3 mm) - 48 m (158 ft) 12 AWG (2.0 mm) - 122 m (400 ft) You can extend the wire distances 300 m (1000 ft). Use a separate power supply, such as the B520 Auxiliary Power Supply Module.

Downloads

Bosch 3000 Brochure

Bosch 3000 Installation Manual

Alarm over IP Solution Brochure

Bosch B426 Datasheet

Bosch B450-M Datasheet
