Hills Security Alarm System Reliance XRPro, Touchnav Kit with Guardall Detectors

The Hills Security Alarm System Reliance XR Pro has been built with cutting-edge technology, comprising an 16 zone Touchnav codepad, 3 motion detectors, internal and external sirens, and battery backup, and a smartphone module for arming and disarming. Experience the ultimate in security with Hills.

Hills Reliance Security Alarm System XR Pro

Model: RELIANCE-XRPRO

In the kit:

• Hills Reliance XR Pro PCB Control Panel in a metal box, NXX-8-WZ-AU
• 1 x Hills Touchnav Code Pad, 206140
• 3 x Guardall Detectors, GP15

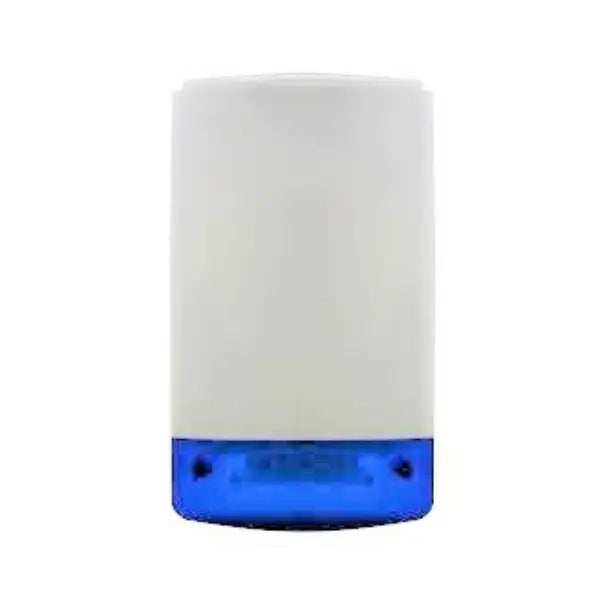

• 1 x External Slimline Combo Siren, WP16
• Choice 1 x Indoor Siren, Top Hat Piezo, WP08 or Flushmounted, WP05
• 1 x Back up Battery, 12 Volts, 7 AMP, SA12V7

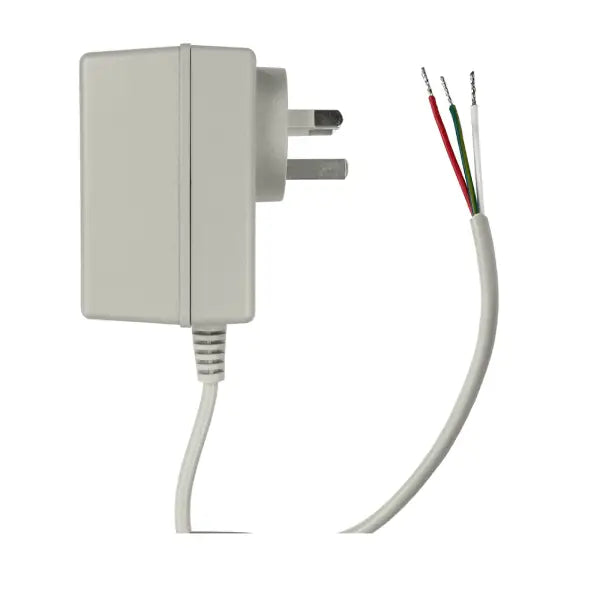

• 1 x Power Pack 16 Volt 1.5 Amp, TP-16500A

16 Zones | Detectors | Sirens  | Power Supplies | Touchnav | Smartphone App

The XR series of panels from Reliance is an intelligent hybrid security solution perfect for installations from residential to massive commercial entities, with an on-board smartphone app module for arming, disarming, and notifications of alarm events.

The XRpro features built-in IP communication, encrypted connections and two wireless ITI receivers, one for 60 bit legacy ITI wireless and the new 80plus fully encrypted ITI wireless solution, with a vast array of accessories for each. Utilising Interlogix’s Ultrasync™ platform the XRpro provides a true monitored path with multiple levels of redundancy, and as an additional security feature, customer codes are stored on the panel.

Capable of monitoring up to 16 independent zones, expandable to a maximum of 176, the XRpro is the perfect security solution for residential, multi-storey, education, retail, government, aged care and warehousing applications and can manage up to 256 user pin codes.

Easy to Operate alarm system the Hills Reliance uses advanced technology to make your life easier.

Backward Compatible- this alarm system is backwards compatible, which allows for ease of upgrade for existing sites.

Alarm System Features

• 16 on board zones (8 with zone-doubling enabled)
• Expandable to a maximum 176 zones (combination of hardwired and/or wireless)
• 8 individual areas/partitions
• Up to 256 user PIN codes (4 digit)
• Maximum 24 codepads
• Onboard IP Reporting/LAN
• Onboard Wireless Receiver
• Cellular Radio (3G+4G)
• UltraSync + Smart App Support

Panel Capabilities

• Supports-176 Zones
• Supports- 8 Areas
• Pin Codes- 256
• Real time event History-1024
• IP Reporting/Lan- Onboard
• ITI Wireless Receiver-Onboard
• Web Programming-Onboard & Web Portal

Accessory Kit

• Plug pack for control panel
• Installation Manual and User Guide
• Resistors
• 12 Volt backup battery
• 3 x CTC High resolution alarm Warning stickers

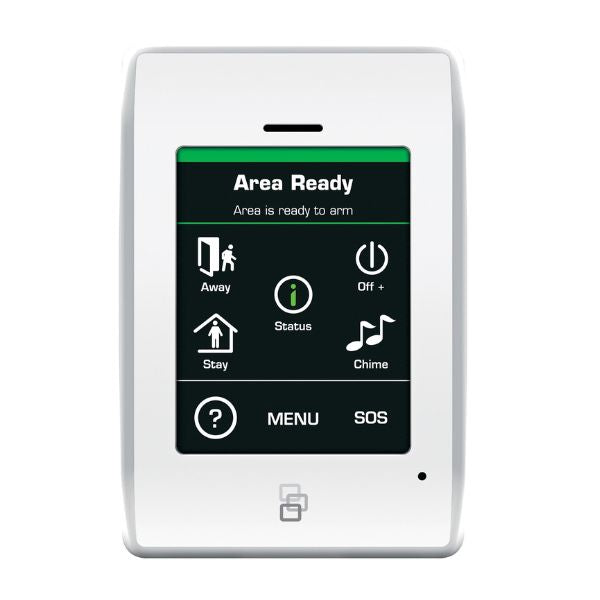

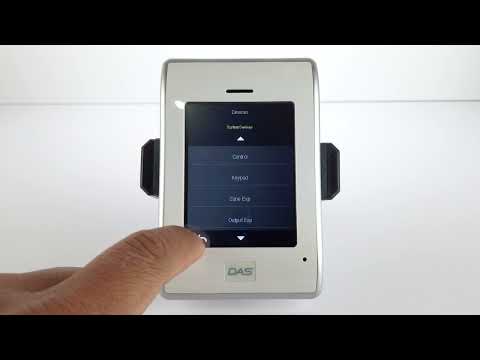

Touchnav Code Pad

Ideal for almost any size application, the Hills Reliance Touch Screen Keypad offers powerful yet simple control of any Reliance security system.

• An intuitive interface, 3.5' touch screen
• Quick Keys for rapid system arming
• Status updates enable quick and easy system management

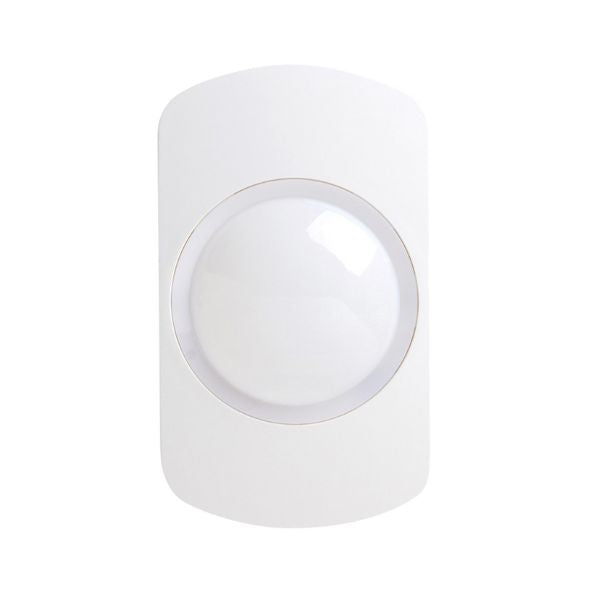

Guardall Pet Friendly Detector

Model: GP15

Guardall’s motion detectors are high performing, most reliable, easiest to install range of detectors, ever. Grade 2 wired wall mount detector with 15m / 90˚ volumetric coverage

• 15m / 90˚ volumetric coverage
• Dual element pyro
• Optional PetWise mode
• EN50131-2-2 Grade 2

Slimline Siren Kit

All in one LED plastic cover with a built-in speaker

• Plug pack for control panel
• Installation Manual and User Guide
• Resistors
• Internal piezo screamer
• 12 Volt back up battery
• 3 x CTC Security High resolution alarm Warning stickers

Onboard IP Module

IP via ethernet allowing communications over the internet, for notification of alarm events or connection to a monitoring service.

• Receive push notifications to your smartphone
• Arm or disarm your alarm system remotely
• Check if doors & windows are open
• Monitor certain areas or zones on your smartphone device
• Monitor history of users
• View all events

Ultra Sync Technology- Encrypted communication via cloud service- can also be connected to a control room for monitoring.

Customise your Reliance XR security alarm system and add functionality as its needed with a range of detection devices.

Hybrid Panel

This alarm system supports a mix of wired and wireless detectors and peripherals out of the box.

Accessories

Control- Codepads, fobs, readers

Detection- PIR sensors, reed switches, glass, seismic

Indication- Internal piezo, External Siren, External Satellite siren

Expansion- WiFi+4G Module, Zone Expander, Wireless Repeater

Software - for window for remote programming, mobile app.

Remote configuration

• Configure/manage your Reliance XR system
• Connect locally or over the internet
• Backup site programming
• Transfer backed up site programming to new panel

Alarm Benefits

The Hills Reliance Security Alarm system offers a range of benefits for homeowners and business owners alike. Some of the key benefits include:

1. Enhanced Security: One of the most significant benefits of a Hills Reliance Security Alarm system is the enhanced security it provides. The system is designed to detect any unauthorized entry or attempted intrusion into your home or business, and it can alert you or the authorities immediately.
2. Deterrent: The presence of a security alarm system can serve as a deterrent to potential intruders. Knowing that the property is protected by a security system, burglars may choose to target another property instead.
3. Remote Monitoring: With the Hills Reliance Security Alarm system, you can monitor your property remotely. You can arm or disarm the system, receive alerts, and view live video feeds from your smartphone or other mobile devices.
4. Smartphone App- Stay connected to your alarm system with the UltraSync+ Mobile app, pre-installed with your Smartphone Module. Easily arm and disarm remotely, monitor door and window status, receive updates to your mobile device, and review alarm event history.
5. Smoke Detection: The system can also detect smoke with a smoke detector connected to your security alarm. If any of these dangerous situations are detected, the system will alert you and/or the authorities, potentially saving lives and property.
6. Insurance Benefits: Many insurance companies offer discounts for homes and businesses that have a security alarm system installed. The Hills Reliance Security Alarm system can help you save money on your insurance premiums.
7. Peace of Mind: Ultimately, the Hills Reliance Security Alarm system provides peace of mind. Knowing that your property is protected and that you can monitor it remotely can help you feel more secure and less anxious about the safety of your home or business.

Downloads
