Description

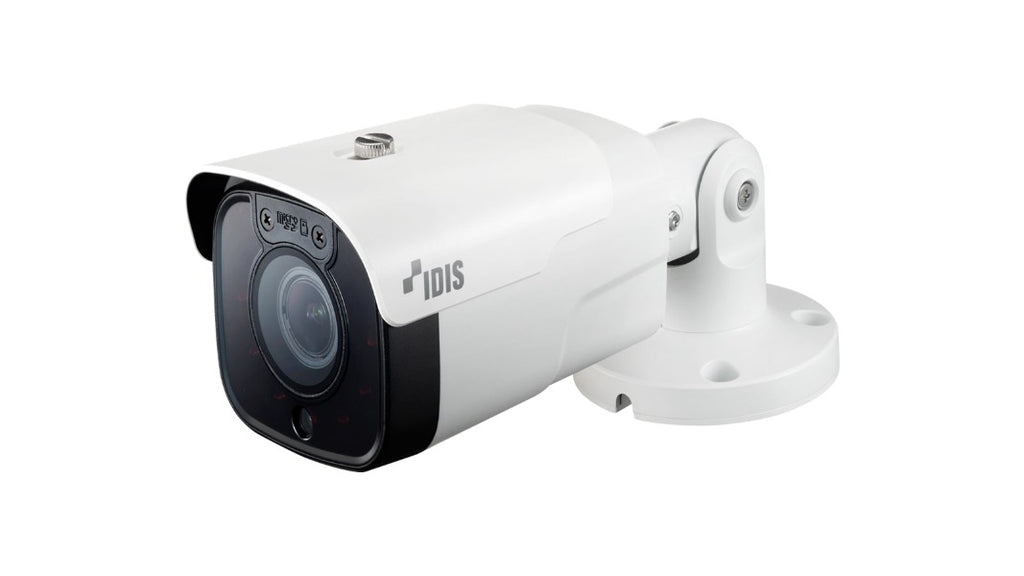

The DC-T4236HRX-A is a full high definition bullet surveillance camera with night time IR distance up to 30 metres
Model: DC-T4236zhRX-A, Bullet Surveillance Camera
Motorized Vari-focal Lens | True WDR| 5 MP Full HD | POE | ICR
5M IR Bullet Camera with Heater/NDAA Compliant
Camera Features
- 5M IR Bullet Camera with Heater / NDAA Compliant
- 5MP (2592x1944) resolution
- Motorized Vari-focal lens (f=3.0 - 13.5mm)
- micro SD/SDHC/SDXC Alarm in/out IK10 / IP67 supports
- Built-in heater
- Day and night (ICR)
- True wide dynamic range (WDR)
- IR LED (Distance: 30m / 98.4ft)
- 3-axis mechanical design for installation
- PoE (IEEE 802.3af Class 3), 12V DC
- Easy installation with DirectIP
- NVR Supports ONVIF
Specifications
| Video | |
| Image Sensor | 1/2.8 |
| Max. Resolution | 2592 x 1944 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | f=3.0-13.5mm |
| Aperture | F1.4 - 3.2 |
| Iris Control | DC IRIS |
| Angular Field of View | Wide : 91°(H) 66°(V) 120°(D) Tele : 31°(H) 23°(V) 38°(D) |
| Min. Illumination | COLOR : 0.15 lux @ F1.4 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 30m / 98.4 ft (4ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | On / Off |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | - |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | - |
| Network | |
| Video Compression | H.265, H.264 (MP) M-JPEG |
| Intelligent Codec | Supported |
| Bitrate Control | H.265 - CBR / VBR, H.264 - CBR / VBR |
| Audio Compression | - |
| Two-way Audio | - |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S |
| Max. Frame Rate | 4:3 mode : 30ips : 2592 x 1944(WDR) 16:9 mode : 30ips : 2592 x 1456(WDR) |
| Supported Resolution | 4:3 : 2592x1944, 1920x1440, 1280x960x 640x480 16:9 : 2592x1456, 1920x1080, 1280x720, 640x360 |
| Multi-video Streaming | Quaruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp, SNMPv2 |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x IP Filtering, HTTPS |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| ALARM AND EVENT | |
| Trigger Event | Motion Detection, Alarm in, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio In/ Out | - |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67, Heater |
| Operating Temperature | -40°C ~ 55°C (-40°F ~ 131°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE IEEE 802.3af (Class 3) |
| Power Consumption | 12V=, 1.1A, 13.2W PoE, IEEE 802.3af(Class 3), 11W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions (W x H) | 80mm X 75mm X 237mm (3.15" x 2.95" x 9.33") |
| Weight | 0.97 kg(2.14lb) |
Downloads
IDIS Bullet Surveillance Camera 5MP, DC-T4536HRX-A Brochure
