Description

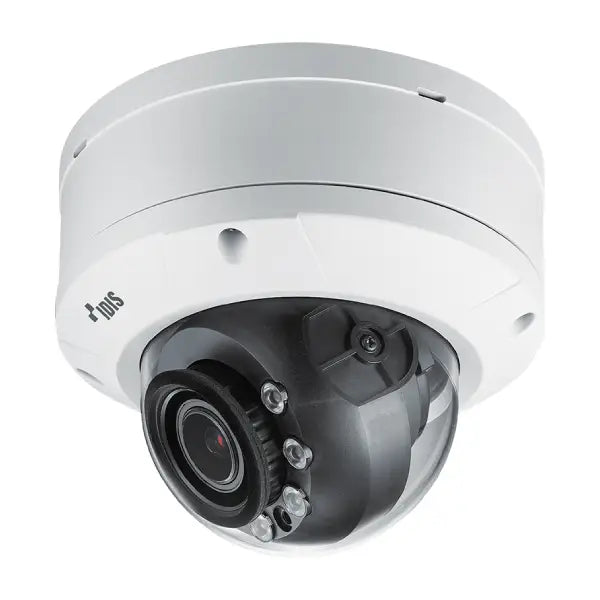

The DC-D6243HRX is a full high definition vandal resistance IR network dome camera with night time IR distance to 30 metres.
Model: DC-D6243HRX Network Dome Camera
Motorized Vari-focal Lens | 2 MP | ICR | True WDR
The IDIS Network dome camera features a motorized vari-focal lens from 7-22mm and has an SD card installed and two way audio.
Camera Features
- Easy installation with Direct IP NVR
- Full HD (1080p) resolution
- Motorized Vari-focal lens (f=7 - 22mm)
- micro SD/SDHC/SDXC, Smart Failover (Up to 256GB)
- Two-way audio
- Alarm in / out
- IK10 / IP67 supports
- Built-in heater
- PoE (IEEE 802.3af Class 3), 12V DC
- Day and night (ICR)
- True wide dynamic range (WDR)
- IR LED (Distance : 30m / 98.4ft)
- 3-axis mechanical design for installation
- Supports ONVIF
- EDGE VA (Motion Detection, Alarm in, Audio Detection, Tampering, Trip Zone, Line Cross, Loitering, Object Detection)
Specifications
| Video | |
| Image Sensor | 1/3 |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | f=7 - 22mm |
| Aperture | F1.4 ~ 2.8 |
| Iris Control | P-Iris |
| Angular Field of View | Wide : 40°(H), 22°(V), 47°(D) Tele : 16°(H), 9°(V), 18°(D) |
| Pan/Tilt/Rotate Range | Pan: -176° ~ 176°, Tilt: 0° ~ 66°, Rotate: -90° ~ 90° |
| Min. Illumination | COLOR : 0.1 lux @ F1.4 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter ( 1 ~ 1/5, 1/7.5, 1/15) |
| Day and Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 30 m / 98.4 ft (6 ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | On / Off / HSBLC |
| Image Stabilizer | - |
| De-fog | On / Off |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone, Line Cross, Loitering, Object Detection |
| Video Out | 1 BNC(Accessory) |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Supported |
| Bitrate Control | H.264 - CBR/ VBR, H.265 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP, IDIS ONVIF Profile S |
| Max. Frame Rate | 30ips : 1920 x 1080(WDR) |
| Supports Resolution | 1920x1080, 1280x720, 704x480, 640x360, 352x240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNPm, SNMPv2 |
| Security | Multi-user Authority, IEEE 802.1x IP Filtering, HTTPS, SSL Encryption |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 256GB) |
| ALARM AND EVENT | |
| Trigger Event | Motion Detection, Alarm in, Audio Detection, Tampering, Trip Zone, Line Cross, Loitering, Object Detection |
| Event Notification | Remote S/W, Email (with Image) |
| -Pre-recorderd Voice Alert (IDIS pro | Off / On |
| Audio In/ Out | 1/1 |
| Alarm In / Out | 1/1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67, Heater |
| Operating Temperature | -40°C ~ 60°C (-4 J430°F ~ 140°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE IEEE 802.3af (Class 3) |
| Power Consumption | 12V=, 0.82A, 9.84W PoE, IEEE 802.3af(Class 3) |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions (Ø x H) | Ø160mm x 128.5mm (Ø6.30" x 5.06") |
| Weight | 1.21 kg |
Downloads
IDIS Network Dome Camera, DC-D6243HRX Brochure
