Hills Reliance NX Remote Control Kit with 2 x Stainless steel remotes, S1890A

Save 39%
HillsSKU: RSI-02

Price:
Sale price$97.17 Regular price$158.40

Payment & Security

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

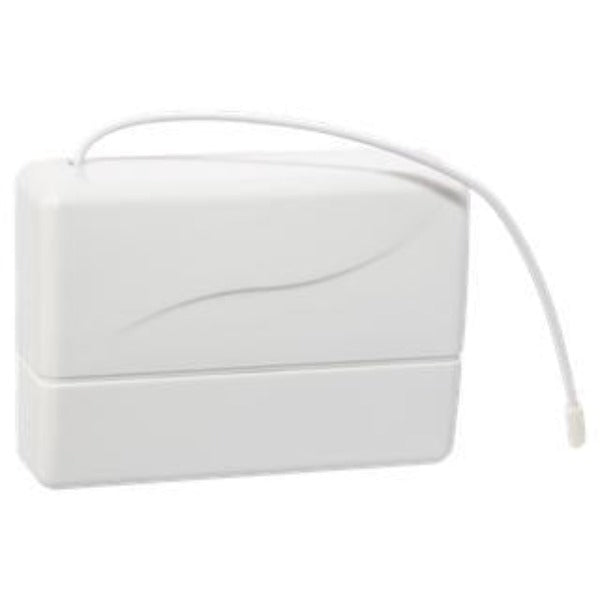

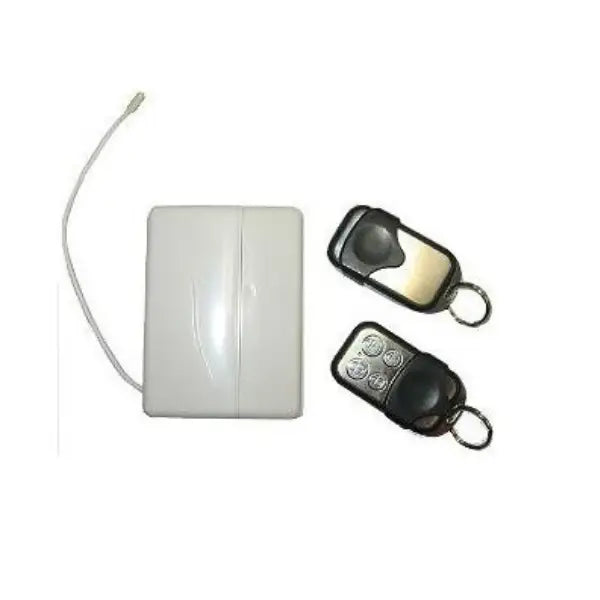

The Hills Reliance NX Remote Control Kit comes complete with wireless receiver and two x stainless steel remotes with slide cover. Compatible with the Hills alarm control panels.

Model: S1890A

NX Remote Control Kit with 2 x Stainless steel remotes

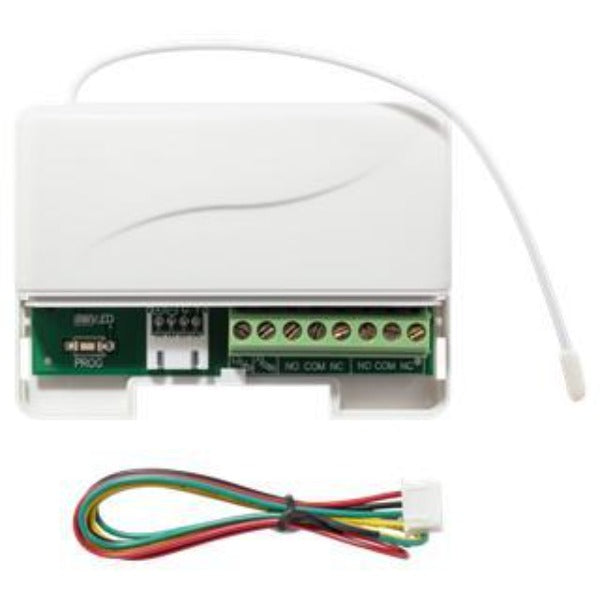

RSI02 remote kit comprises one receiver, two pre-learned remotes, a 4-wire harness and a quick mounting plate. Through Jumper Setting,

It can be set to work with NX/Reliance alarm panels to operate Arm (away/stay), Disarm and Panic via the keypad data bus. The receiver is also equipped with two relays that can be used to operate other devices such as garage door

Specifications

Remote

  • Operating Range: A minimum of 50m (open air)
  • 433.92 MHz Keeloq rolling code: 4.3 billion combination; SAW resonator (filter) locked (+/- 75KHz)
  • Transmitting power: <10mW
  • Operating Voltage: 6 V powered by 2 x 3 VDC lithium batteries
  • Battery Life: 3 years under normal operating conditions
  • Current: <1uA standby; 12mA max.
  • Low battery indication: LED on the remote flashes when the button is pressed
  • Auto shutoff: the remote stops transmitting if a button gets pressed for 25s.
Receiver
  • Operating voltage: 9-15VDC; Current: 10mA Standby; 100mA max.

Outputs:
  • Data – Arm (away/stay), Disarm and Panic. 4-wire harness provided
  • Two programmable relay outputs; SPDT; rating 1A 24VDC/120VAC
  • Chirp & Flash “Switch to Ground” outputs for Arm and Disarm notification
  • Standard capacity: 25 remotes
  • Mounting plate provided for quick receiver installation

Hills Reliance Alarm remote Kit Compatible with:

  • Hills Reliance 8
  • Hills Reliance 12
  • Hills Reliance 128
  • DAS alarm systems
  • Hills Reliance NX4 alarms
  • Hills Reliance NX8 alarms
  • Hills Reliance NX16 alarm systems

Shop CTC Security for best deals on Hills Security Alarm Systems

Downloads

NX Remote Control Kit S1890A Date Sheet
