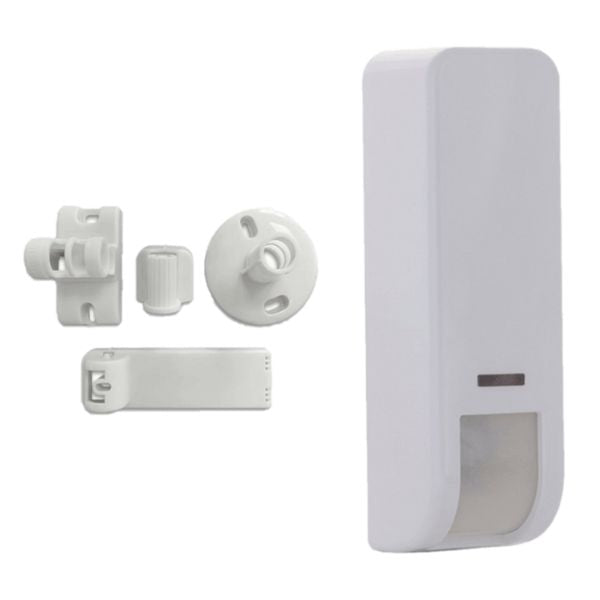

Risco Wired Curtain Detector, RK107DTB000B This dependable curtain detector is designed to help keep your home safe and secure - giving you peace of mind.
Model: RK107DTB000B
RISCO Group’s Wired Outdoor DT AM Curtain Detector was designed to significantly enhance outdoor protection 24 hours per day, using advanced technologies such as Active IR Anti-mask, Integrated Dual Technology that combines K-Band microwave with a PIR sensor and Direct Sunlight Immunity to maximize protection and minimize false alarms.
RISCO Group’s Wired Outdoor DT AM Curtain Detector was designed to significantly enhance outdoor protection 24 hours per day, using advanced technologies such as Active IR Anti-mask, Integrated Dual Technology that combines K-Band microwave with a PIR sensor and Direct Sunlight Immunity to maximize protection and minimize false alarms. The Wired Outdoor Curtain provides highest accuracy with a narrow beam featuring 1m width at the edge of 12m coverage range, efficiently protecting narrow spaces and thoroughly eliminating potential false alarm from objects moving outside the protected area.
Features:
- Dual Technology and a narrow beam for minimum false alarms
- Flexible coverage range with adjustable four sensitivity levels
- Active IR anti-mask
- Mounting height of up to 3.0m
- A 90° bracket for easy installation on the left or right side of the protected area
- RISCO Bus for diagnostics & control and cost-effective installation & maintenance
Specifications
| Coverage | Up to 12m, 5° |
| Mounting Height | 1.8 – 3.0 m |
| Tamper | Wall |
| Current Consumption (relay mode) | 15 μA |
| Current Consumption (bus mode) | 10 μA |
| Direct Sunlight Immunity | Yes |
| RF Immunity | 10MHz to 3GHz, According to EN50130-4 |
| Operating Temperature | -20°C to 60°C |
| Environmental Rating | IP65 |
| Dimensions | 124 x 35 x 42mm 124 x 44 x 49mm with bracket |
