Description

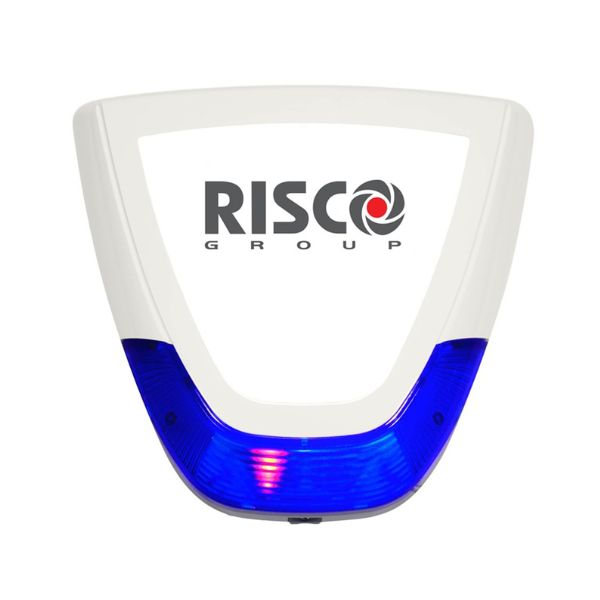

Risco Outdoor Siren, RS402BL0000A This reliable siren makes it easy to stay safe, so you can focus on the things that matter. It's the perfect addition to any home security system.
Model: RS402BL0000A
The LuMIN8 Delta Plus combines high performance and reliability with powerful design features making it the perfect finishing touch for your security installations. Powered by RISCO Bus technology, the LuMIN8 Delta Plus supports remote servicing when installed on a RISCO security system, saving time and money on installation.
Features
- Long life SLT strobe.
- UV-treated vandal proof polycarbonate housing.
- SAB/SCB selectable.
- Auto recharging battery circuit.
- Double tamper protection (Wall & Cover).
- Remote and local engineer mode.
- Flexible strobe activation when connected in serial mode.
- Remote diagnostics and control when connected in serial mode. Protection from power supply inverted connection.
- Audible confirmation of set/unset.
Specifications
| Input DC Power: | Regulated 13 0 - 14 2V |
| Quiescent Current: | 23mA |
| Sounder current: | 450mA |
| Sounder current: (Quiet mode) | 180mA |
| Strobe current: | 10mA |
| Battery charging current: | 15mA |
| Speaker Sound level: | 114dbA |
| Strobe light: | Surface Light Technology SMT LED |
| Strobe lens: | Polycarbonate - blue |
| Strobe flash rate: | 60 times per minute (maximum) |
| Back-up battery (rechargeable): | Ni-MH rechargeable 8 4V, 280mA/h |
| Ingress Protection: | IP65 (For encapsulated PCB), IP44 (For other sounder components), IK 08 |
| Operating Temperature: | -25°C to 60°C |
| Humidity: | 95% maximum |
| LuMIN8 Delta Dimensions (W x L x H): | 50 x 277 x 236 mm |
Downloads
Risco Outdoor Wireless Siren, RS402BL0000A- Datasheet
