Description

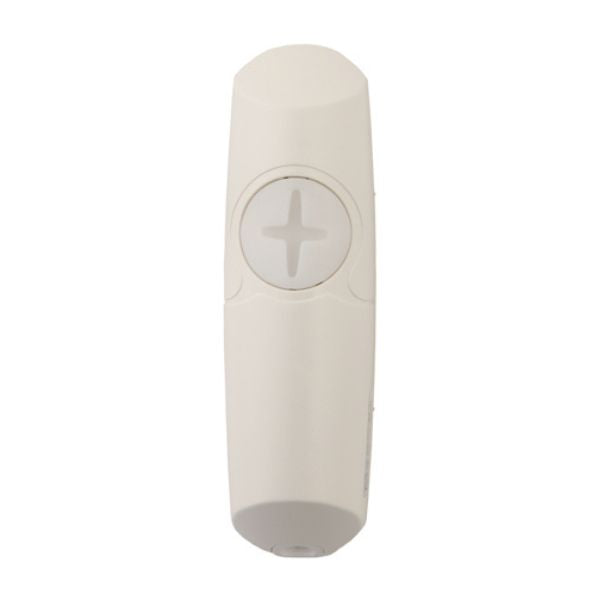

Risco ShockTec™ Plus Digital Vibration Detector, RK600S00000B This sophisticated but easy-to-use detector offers maximum protection against unexpected shocks, so you can feel safe and secure.
Model: RK601SMG300B
ShockTec™ is a digital shock detector providing reliable 24-hour perimeter protection. A break-in is detected as soon as the intruder attempts to force, smash, drill or even saw through the protected window, door, wall or roof.
ShockTec™ employs an advanced digital microprocessor to analyze the vibration signal received from the piezo electric sensor.
Features
A unique feature of ShockTec™ 600S is its digital sampling of the signal simultaneously in two separate channels, each channel amplified at a different gain. This provides an extremely wide dynamic range of the sampled signal, enabling precise measurement and analysis of the shock signal.
Specifications
| Supply Voltage | 9-16Vdc |
| Current consumption (typical) | 12.5mA |
| Operational temperature | -20°C to 60°C |
| Maximum humidity | 95% non-condensing |
| Sensitivity setting | Dual stage potentiometer |
| Tri-color LED indicator | Orange-over-sensitive, green: alarm & correct calibration, red: under-sensitive |
| Contact ratings | Alarm relay: 100mA at 24VDC, NC Tamper relay: 500mA at 24VDC, NC |
| Alarm Time | 2.5 seconds |
| Latching modes | Any or first to latch operation modes |
| False alarm protection | Digital microprocessor signal processing and noise reduction with maximum ground plane |
| Enclosure material | Flame retardant ABS |
| Enclosure dimensions | 25x28x95mm |
