Description

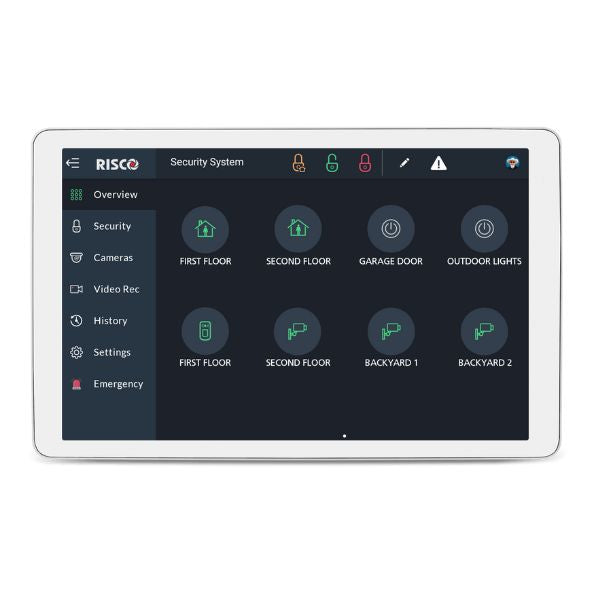

Risco Touchscreen Keypad, RP432KPT000A This keypad is designed to be easy to use with its intuitive touchscreen capabilities, and to give you the peace of mind that your security is top-notch.
Model - RP432KPT000A
Features
RisControl is a responsive, high resolution 8” touchscreen keypad, offering intuitive easy to use interface. With RisControl the user can control all alarm and cloud-based solutions from RISCO Group from one access point.
With a clear overview of the system status, easy arm/disarm functionality and the option to view live video and recordings from the VUpoint Video Solution. RisControl communicates via the System Bus (RS-485) with the control panel.
The communication with RISCO Cloud is via WiFi.
The Touchscreen keypad is built for quick and easy installation with a mounting bracket and a detachable connector for easy wiring.
The RisControl keypad is compatible with LightSYS+ and LightSYS2. If used with LightSYS2 it was be running firmware version 6.05 or higher.
****The RisControl cannot be used as a programming keypad****
Features
- Convenient access of keypad functions for a smart user experience
- Customizable user interface, easy to use

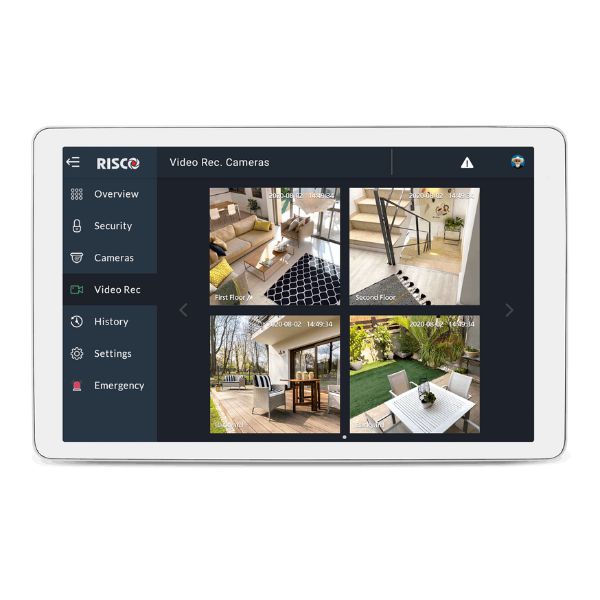

- View live video and recordings by VUpoint Video Solution
- View images Camera Detectors
- Detachable connector for easy wiring.
- Automated Software updates via Wi-Fi
- Grade 3 certified
Specifications
| Display | 8 “ IPS |
| Resolution | 800x1280 |
| Speaker | 8 Ohm / 1W |
| Wi-Fi | 802.11 b/g/n 2.4 GHz |
| System interface | RS-485 |
| Protection | Wall Tamper |
| Dimensions | 208 x 129 x 24mm |
| Weight | 481g |
| Operating Voltage | 13V ±10% |
| Current Consumption | 13V ±10% , 200 mA typical, 300mA max |
| Operating Temperature | -10°C to 55°C |
