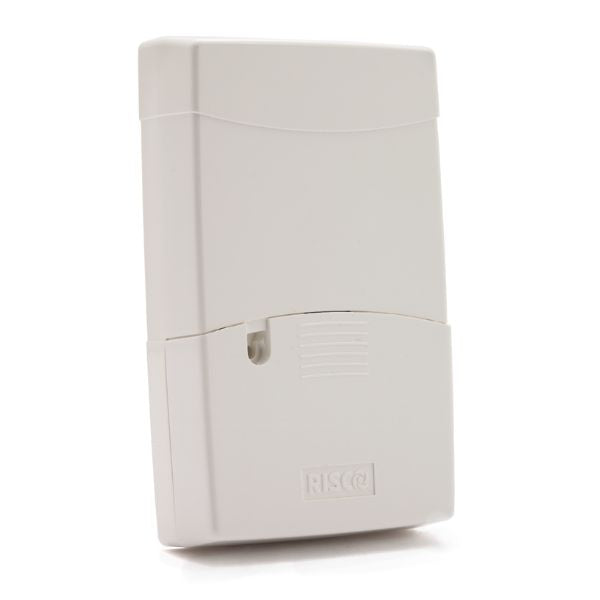

Risco Wireless Receiver 32 Zones c/w 2 X Outputs 1A dry Contact
Model; RP432EW4000A
DESCRIPTION
The LightSYS 2-Way Wireless Expander is a flexible unit that can be used either as a wireless expander when connected to the LightSYS security panel or as a stand-alone receiver, with support for up to 200 keyfobs and 2 outputs.
FUNCTIONS
- Support for RISCO’s range of 2-Way wireless sounders, slim keypads, 8-button keyfobs and detectors
- Up to 4 2-Way wireless slim keypads
- Up to 32 supervised wireless zones (bus mode)
- Up to 16 multi-function keyfobs (bus mode)
- Up to 200 stand alone keyfobs (bus and stand-alone modes)
- Two utility outputs
- Rolling code technology
- Signal jamming detection
- Threshold-level calibration
- Tamper detection
- Transmitter supervision low battery detection
- Nominal center frequency: 868.65 MHz or 433.92 MHz
- Can be installed inside or outside the LightSYS main enclosure
- Up to two WL Expanders per LightSYS system
SPECIFICATIONS
| Operating Voltage | 13V +/- 10% |
| Current consumption | Typical: 40 mA; max 65mA |
| Power Output (868.65Mhz) | 10mW (max) |
| RF immunity | According to EN50130-3 |
| Range (L.O.S) | 300 meters |
| Relay outputs | 12VDC @ 1A max Dry Contact Relays |
| Operating temperature | -10°C to 55°C |
| Storage temperature | -20°C to 60°C |
| Size | 125.5 X 78 X 25.5 mm |
| Frequency | RP432EW8 – 868.65 MHz |
